Suitable for mold welding, automatic welding
Two box structure, easy to install and maintain, stable performance
Multiple language versions available to meet export requirements
|
Technical parameters |
|||
|
input voltage |
AC380±10% 50/60HZ |
Start time |
25S |
|
Pulse frequency |
1.0~100HZ continuously adjustable |
ambient temperature |
≤45 ℃ |
|
pulse width |
0.1~20.0ms adjustable grading |
Operation method |
Touch control |
|
Control current |
60A～310A |
Display touch screen installation size |
137mm*190mm |
|
Single point energy |
≤ 70J (may vary depending on the optical path configuration) |

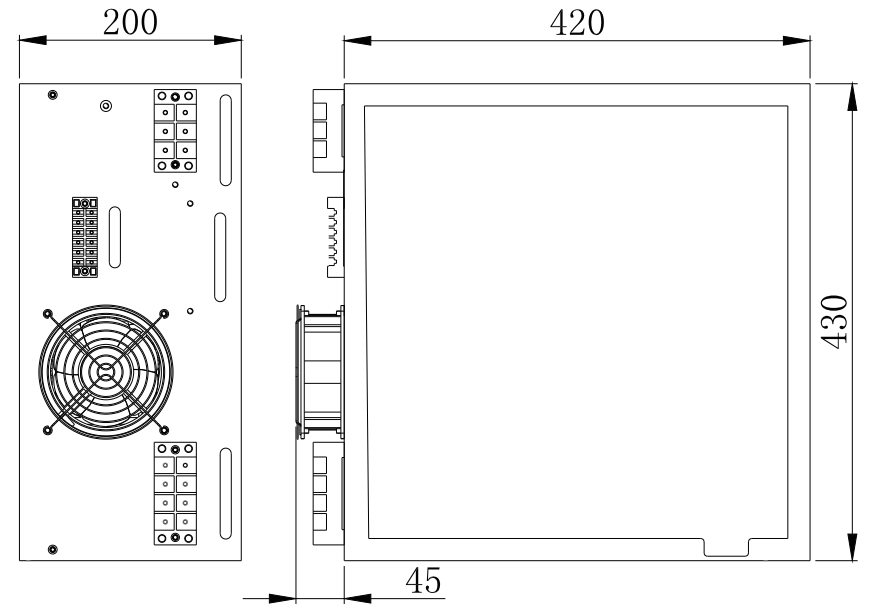

Power supply volume |
2* L430mm*W420mm*H200mm |
|
Power output power |
≤3KW |
||
