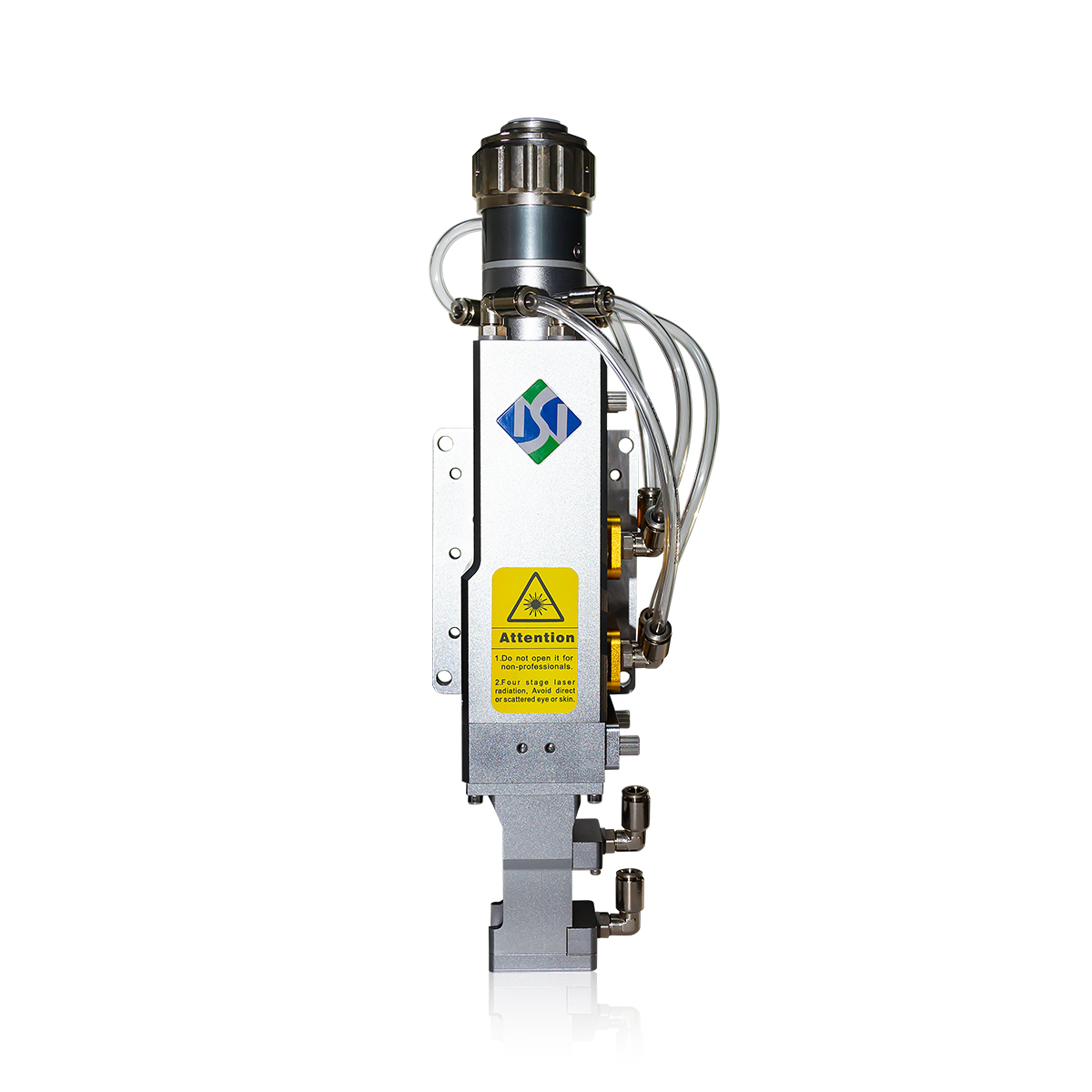

A cost-effective welding joint.
Optional laser control system, 7-inch touch screen, integrated control, simple and convenient operation.
Can be equipped with various lasers with QBH connectors, easy to install, no need for debugging.
Equipped with CCD imaging function for easy observation.
Full optics and body water cooling improve the stability and service life of welded joints
Stable and reliable, capable of carrying 3000W power
|
Technical parameters |
|
|
maximum power |
3000W |
|
Collimate/focus focal length |
F100 F200/250/300 |
|
Cooling method |
water-cooling |
|
weight |
2.5KG |
|
Optional selection |
Coaxial, wind knife, wire feeding mechanism, side blowing, red light bracket |
